Description

Overview

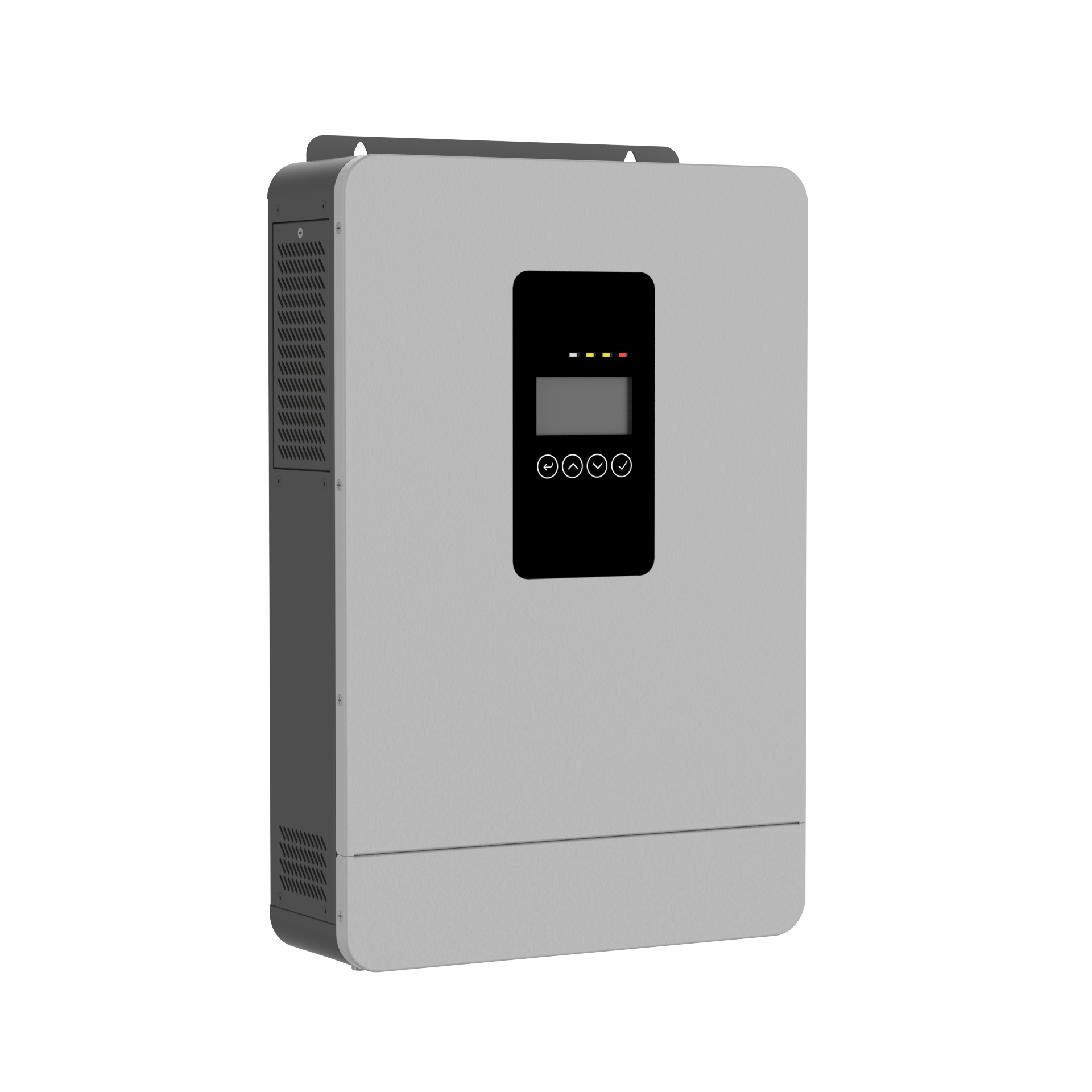

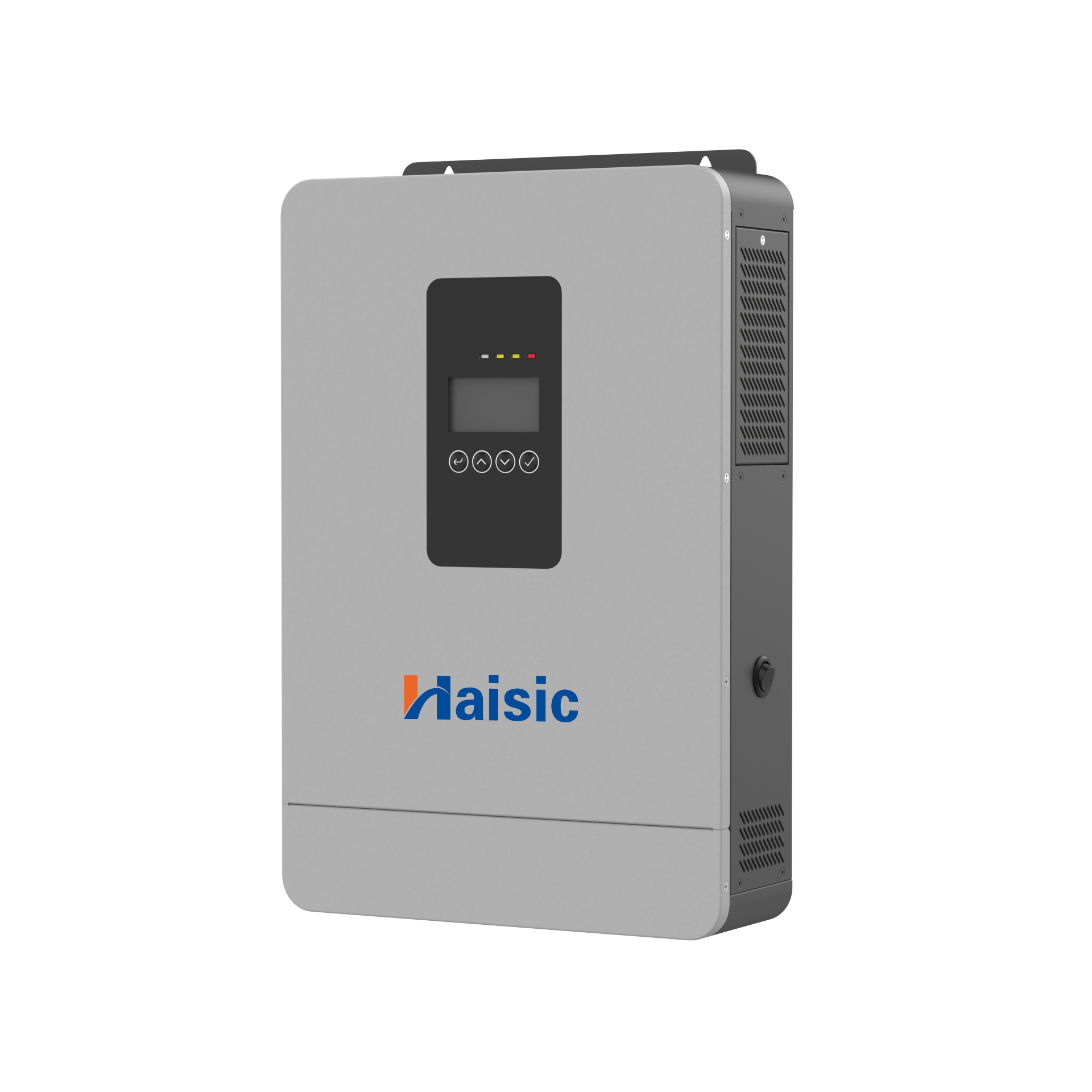

The Haisic PV5000-24 is a high-performance 4.2kW Hybrid Solar Inverter designed to provide efficient, stable, and intelligent power management for residential, commercial, and off-grid solar applications. Featuring an advanced MPPT solar charge controller, the PV5000-24 maximizes solar energy harvesting while ensuring fast battery charging and reliable power delivery.

Supporting both 24V Lithium and Lead-Acid batteries, this inverter offers outstanding flexibility for a wide range of solar energy storage systems. Its intelligent power management system automatically optimizes energy flow between solar panels, batteries, utility power, and connected loads to maximize efficiency and minimize electricity costs.

With multiple communication interfaces, an intuitive LCD display, and comprehensive protection features, the PV5000-24 is an ideal solution for users seeking reliable solar energy management.

---

Key Features

• Pure Sine Wave Output
• Rated Output Power: 4.2kW
• Advanced MPPT Solar Charge Controller
• Supports Lithium & Lead-Acid Batteries
• High Solar Charging Efficiency
• Intelligent Battery Management
• LCD Display for System Monitoring
• Multiple Communication Interfaces
• High Conversion Efficiency
• Wall-Mounted Compact Design
• Quiet Operation
• Easy Installation & Maintenance

---

Applications

The PV5000-24 is ideal for:

• Residential Solar Systems
• Commercial Solar Installations
• Hybrid Solar Systems
• Off-Grid Power Systems
• Home Backup Power
• Offices
• Shops
• Telecom Backup Systems
• Rural Electrification
• Emergency Power Applications

Advanced MPPT Solar Charging Technology

The built-in Maximum Power Point Tracking (MPPT) controller continuously tracks the optimum operating point of the solar array to maximize power generation throughout the day.

Benefits of MPPT

• Maximum solar energy utilization
• Faster battery charging
• Higher system efficiency
• Better performance during cloudy weather
• Reduced energy losses
• Improved overall solar system performance

---

Intelligent Battery Management

The PV5000-24 supports both 24V Lithium and Lead-Acid batteries, providing intelligent charging profiles that maximize battery lifespan while ensuring safe and efficient operation.

Battery Protection Features

• Overcharge Protection
• Over-discharge Protection
• Overload Protection
• Short Circuit Protection
• Over Temperature Protection
• Reverse Polarity Protection
• Intelligent Charging Algorithm
• Automatic Battery Management

---

Multiple Communication Interfaces

The inverter offers flexible monitoring and integration through multiple communication ports:

• RS485
• RS232
• USB
• Dry Contact

These interfaces allow easy system monitoring, remote management, and integration with compatible energy management systems.

---

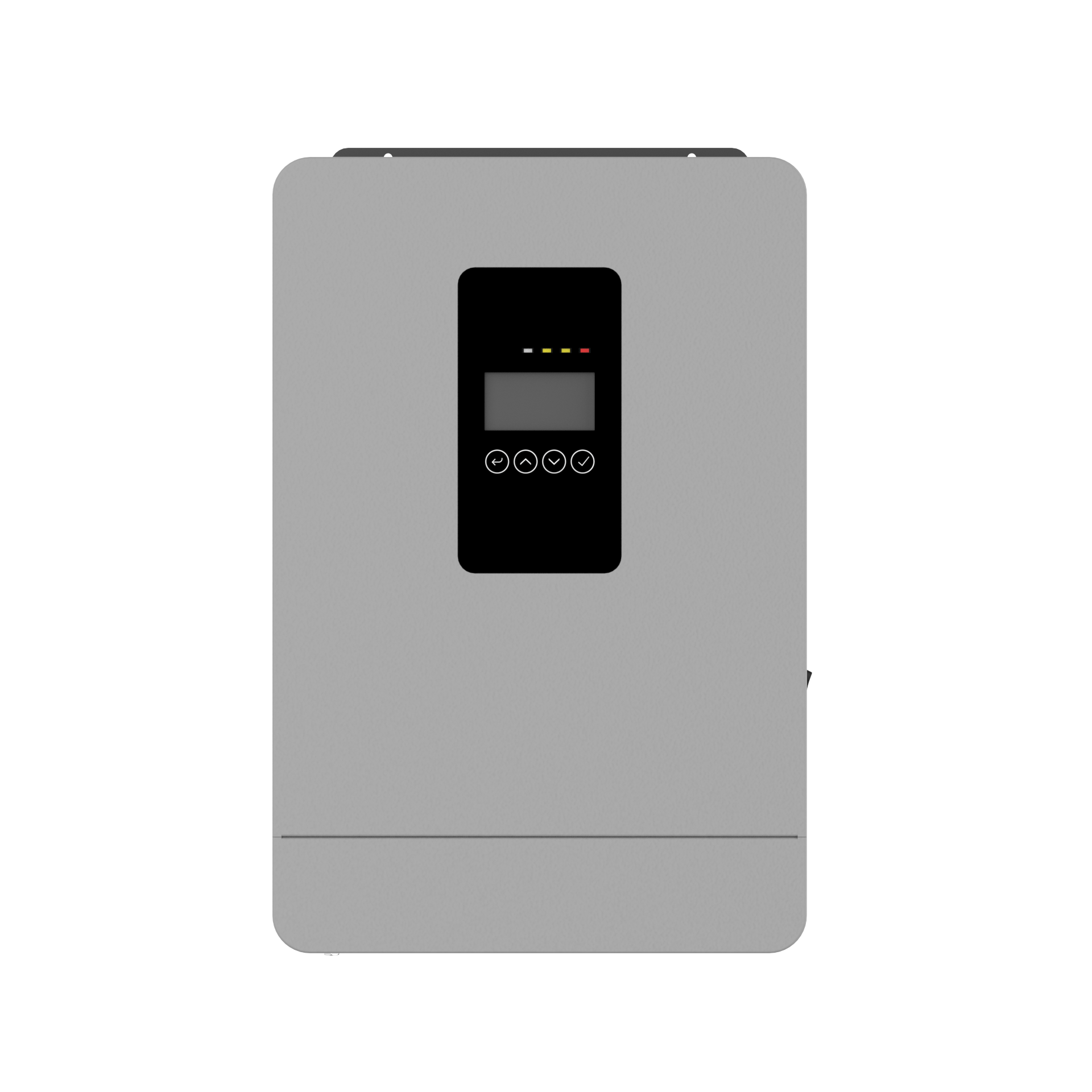

User-Friendly LCD Display

The built-in LCD display provides real-time monitoring of:

• Solar PV Input
• Battery Status
• Charging Information
• AC Output
• Load Percentage
• Operating Mode
• System Warnings
• Fault Diagnostics

---

Why Choose Haisic PV5000-24?

The Haisic PV5000-24 combines advanced MPPT technology, intelligent battery management, and high-efficiency power conversion to deliver reliable energy for homes and businesses. Its compatibility with both Lithium and Lead-Acid batteries, multiple communication interfaces, and robust protection features make it an excellent choice for hybrid and off-grid solar installations requiring dependable long-term performance.

---

Package Includes

• 1 × Haisic PV5000-24 Hybrid Solar Inverter
• User Manual
• Installation Accessories
• Communication Cable

---

Suitable For

• Residential Homes
• Villas
• Offices
• Shops
• Commercial Buildings
• Hybrid Solar Systems
• Off-Grid Solar Installations
• Telecom Backup Systems
• Rural Electrification Projects
• Emergency Backup Power

---

Why Buy from Haisic?

Haisic develops advanced solar inverters and energy storage solutions that deliver outstanding efficiency, safety, and long-term reliability. Every inverter is manufactured using premium components and tested under strict quality standards to ensure stable operation, intelligent energy management, and dependable performance across residential, commercial, and industrial solar applications.
